DIAPHRAGM PUMP MODEL NO.  DIPL-4100

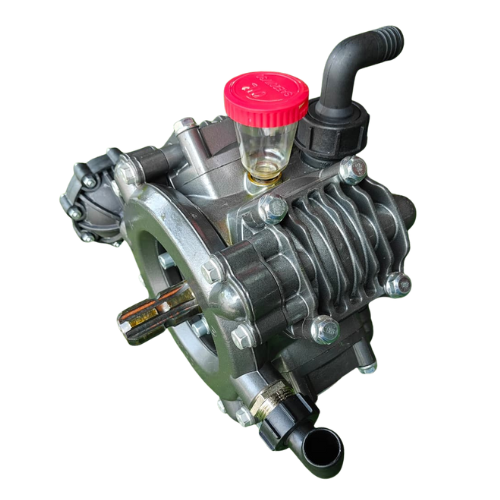

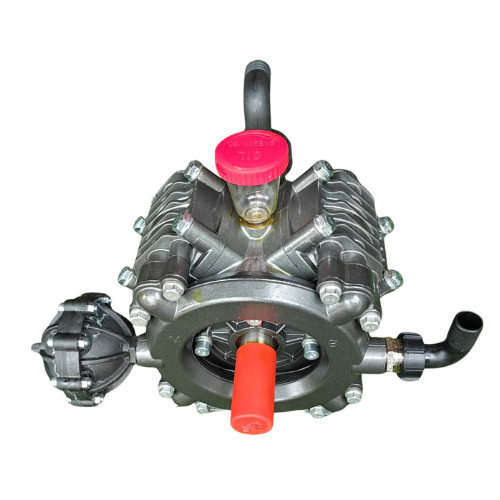

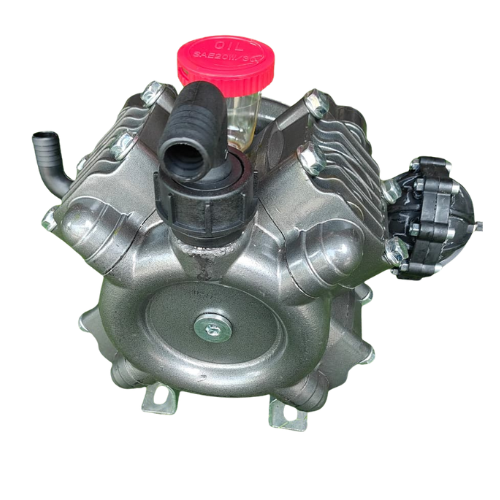

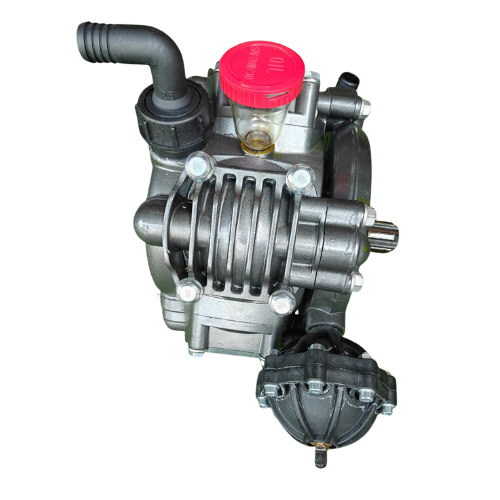

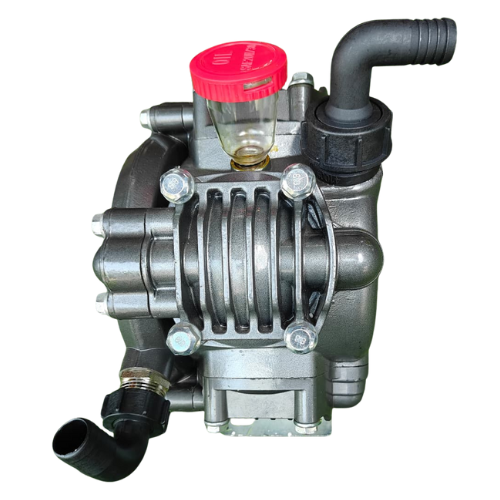

Diaphragm Pump (Model: DIPL4100)

The DOLLS Diaphragm Pump Model DIPL4100 is a high-performance agricultural spraying pump designed for efficient and reliable spraying operations. Built with robust engineering and durable materials, this pump ensures consistent output for a wide range of agricultural applications including crop protection, pest control, and irrigation support.

With a compact design and lightweight body, the DIPL4100 offers excellent portability while delivering high pressure and optimum flow rates to cover larger areas in less time. The 4-piston mechanism ensures smooth operation, longer service life, and superior performance even under continuous use.

Key Features

• High Pressure & Flow: Capable of delivering up to 35 bar pressure and 100–120 L/min flow rate.
• Power Efficient: Operates with a 7 HP motor or 9 HP engine, ensuring fuel and energy efficiency.
• Durable Build: Heavy-duty body with corrosion-resistant components for long-lasting performance.
• Compact & Lightweight: Weighs only 15 kg, easy to handle and install.
• Reliable Operation: Designed for continuous use in challenging agricultural environments.

Technical Specifications

Speed (RPM)	600
Pressure (Bar)	35
Motor Power (HP)	7
Engine Power (HP)	9
Flow Rate (L/min)	100–120
Piston	4
Weight (Kg)	15

Applications

• Tractor-mounted boom sprayers
• Orchard and vineyard spraying
• Field crop protection
• Fertilizer and pesticide application
• Irrigation support

Efficient Irrigation Solutions: The Power of Modern Diaphragm Pumps

Farmers trust the DOLLS DIPL4100 to be a universal agriculture diaphragm pump designed for various spraying needs. Its high efficiency comes with advanced 4-piston diaphragm pump technology and convenient compatibility with tractor diaphragm pumps and PTO-operated diaphragm pumps, making it extremely flexible.

Whether deployed as an orchard diaphragm spray pump, a tractor-driven diaphragm pump for large farms, or a sprayer diaphragm pump for precise crop protection, the DIPL4100 guarantees efficient results. With its capability to function as a powerful 7 HP diaphragm pump, it fulfills the needs of modern mechanized farming, including boom sprayer diaphragm pump integration for broad coverage operations.

This makes it the perfect option for farmers seeking a durable, high-performance solution for agricultural spraying.
